Basic Information: |
|
|

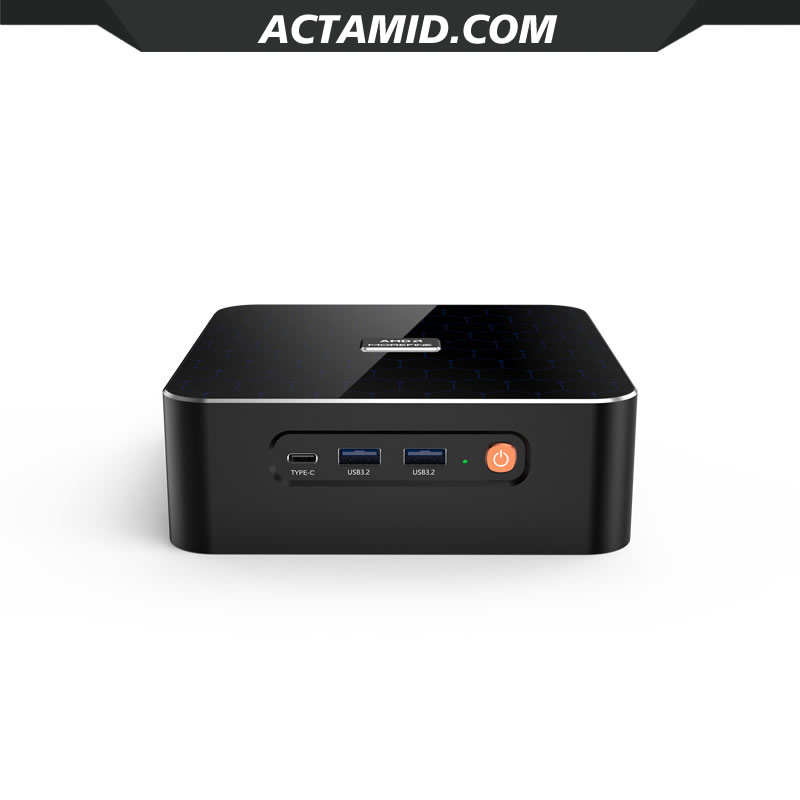

BAREBONE |
6900/6800/6600 With case |
|
TDP |
15W-45W |
|
Motherboard |
144 x 141mm customized size |
|
Network |
2 x 2.5G RTL 8125BG |
|
Video |
Radeon™ Graphics |
|
Input/output port |
|
|
Switch |
1 x Power On/Off Switch |
|
Power |
1 x 19V DC In |
|
LED |
1 x LED |
|
USB |
3 x USB3.2, 3 x USB2.0 |
|
USB-C |
1 x Type-C USB4.0 thunderbolt 3 |
|
Display |
1 x DP1.4, 1 x HDMI2.1, 1 x Type-C |
|
LAN |
2 x RJ45 LAN |
|
Audio |
1 x Audio(MIC&SPK) |
|
Power and Working Environment |
|
|
Input |
DC100-240V AC/50-60Hz |
|
Output |
19V/4.74-6.32A |
|
Operating Temperature |
-10/60 Centigrade |
|
Storage Temperature |
-20/+70 Centigrade |
|
Relative Humidity |
0%~90% (non-condensing) |
|
Product Dimension & Details |
|
|
Size |
149*145*40mm |
|
Weight |
Net 0.6kg, Gross 1.5kg |
|
Shell |
Aluminum Alloy+ABS |
|
Cooling Mode |
Silent Cooling Fan |
|
Functions |
Support PXE, RTC, Wake on LAN, Auto power on etc |
What's in the package
1xBAREBONE
1xPower supply
1xPower cable
1xSATA cable
1xVESA bracket
1xUser manual
